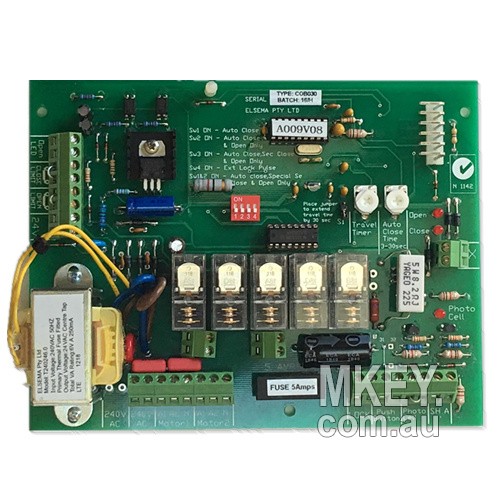

The COBO30 is an upgrade of the older COBO20. The COBO30 has built-in transformer, auto close, open only, security close and extended lock pulse. The COBO30 card is used to control automatic door/gate that have 240VAC motor with limit switches. It can be used for either single or double gates.
It also compatible with almost sliding gate and swing gate openers as long as the motor(s) input voltage 240V For exsample magic Button 298 Magic Button 106 (sliding gate) and Magic Button 206 (double swing gate)
Even hydraulic doors can be wired to the COBO30 card. Hydraulic doors have overflow fluid limits which requires the COBO30 to disable the electronic limit switches. This is selectable by linking the limit switches. Limit switches are linked as factory defaults. The COBO30 has a built-in lock control, push button, photocell control, wireless operation with a remote control transmitter, door open indicator (LED Output), limit switch connection and 24VAC Output.
Dimension of the control board 180mmx140mmx40mm
