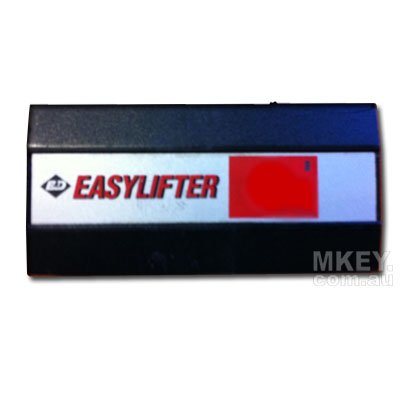

This is the original remote for B&D Easylifter garage door opener with an operating frequency of 315 MHZ.with 8 DIp switched. ( If inside of your remote with 9 DIP switched that is different one EASYLIFT318 )
This remote has been discontinued and replaced by easy315.
Please NOTE there is another very similar remote Easylifter318. These two remotes have the same appearance except Easylifter318 has “318MHZ” right next to the button while Easylifter 315 doesn't have anything. Another distinct feature is that Easylifter 318 has 9 dip switches inside while 315 has only 8 dip switches but Easylifter has a little switch on the left side.
These two remotes have different working frequencies and coding systems therefore their upgrade solutions are completely different. For Easylifter 318, a handy upgrade remote can be used straight after matching the setting of 9 dip switches; for Easylifter 315, the code needs to be replicated into a newer and smaller remote via special equipment for straight use or programmed to the opener manually by the user.
In short, Easylifter 318 is equivalent to B&D MPC2 while Easylifter 315 is to B&D MPC3.
If you advise the positions (+, 0 & -) of the 8 dip switches of your current Easylifter 315 remote, we will be able to replicate the coding into a newer and smaller remote using a specialised equipment. So you can use the new remote to control you door straightaway! No hassle of programming!
